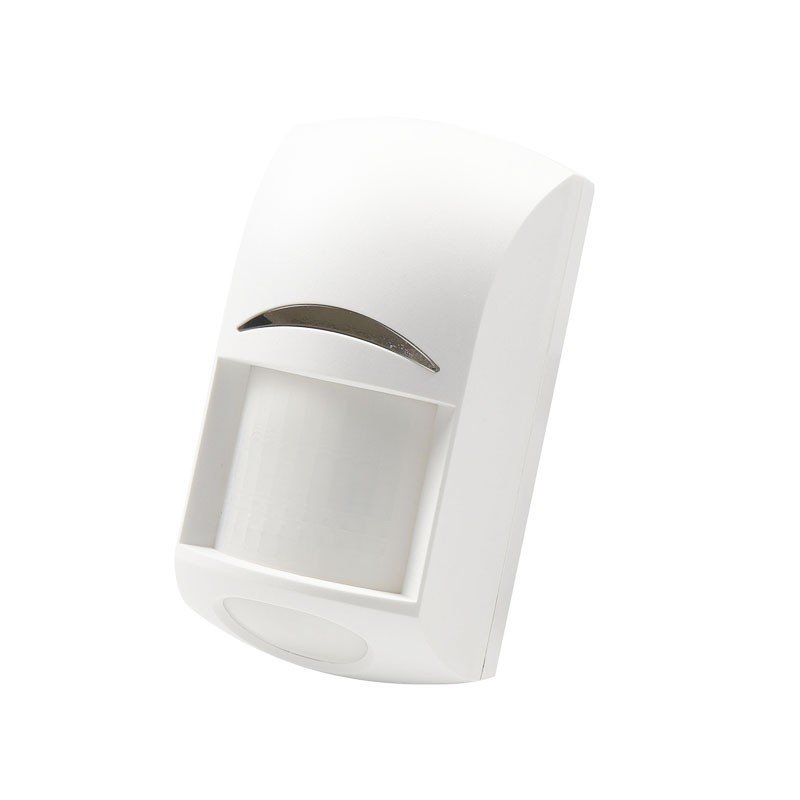

Wired Wide Angle PIR Motion Detector

  • Detecting human’s motion and body’s temperature in a wild angle area
  • With Tamper switch
  • LED ON/OFF optional
  • Automatic temperature compensation
  • Pulse count optional
  • Alarm output N.C./ N.O. optional
  • Operating voltage: DC 9-16V
    consumption current: less than 18mA(DC12V)
  • Operating temp.: -10 to +50°
  • Installation mode: wall mounted; installation height: about 2.2m
  • Detecting distance: 12m
  • Detecting angle: 110°
  • Alarm output: N.O./ N.C. optional; anti-dismantle switch: N.C.
  • Dimension: 89*52.5*38.5mm; Packing box: 12.5*7.7*5.3cm ; Weight: 0.12Kg/pc
