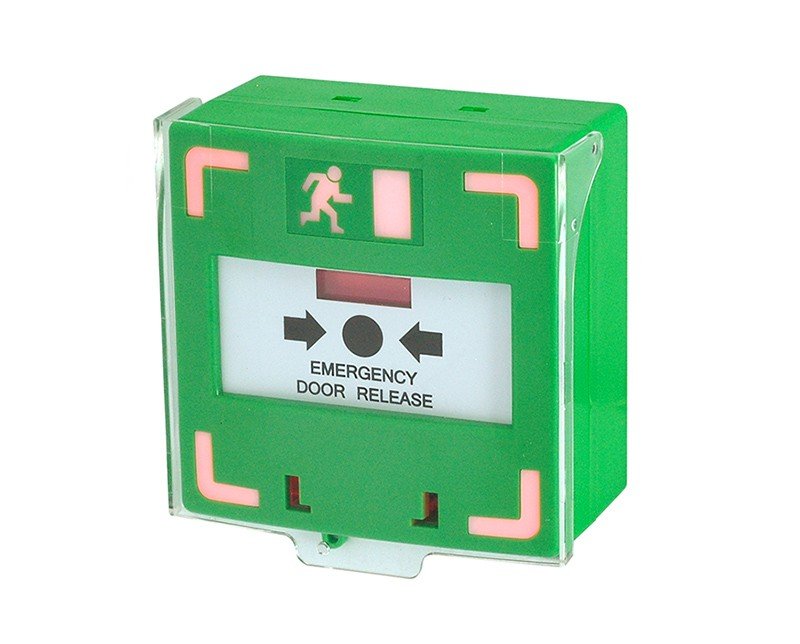

Resettable Emergency Exit Button -With LED and Buzzer

Fireproof material
With Buzzer & Indicator function
Buzzer: Set as silent, interval buzzing, or continuous buzzing
Indicator: Dual-color (red and green), Red indicator to set blinking, off or on.
Contact Output: NO/NC/COM,(Maximum load of 125V/3A)
Power Supply: DC12V~DC 24V ±5%
Suitable for Exit door, Emergency door, Escape vent

Item	ZDF-101RL
Standard Structure	Fireproof Material, Easy to install
Material	ABS, PC ( transparent slip case)
Surface	Surface Mount
Operation current	DC 12V/10mA(Standby)/50mA(Operation) (±5%)
Operation current	DC 24V/11mA(Standby)/64mA(Operation) (±5%)
Output	N.O.N.C.&COM, Output(Maximum load of 125V/3A)
Power Supply	DC12-DC 24V (±5%)
Buzzer	Set as silent, interval wailing or continuous wailing
Indicator	Dual-color(red and green)
Indicator	Red indicator to set blinking, off or on
Color	Red,White,Green,Orange,Yellow,Black,Blue etc
Dimensions	90Lx93Wx45H(mm)
Weight	208g
