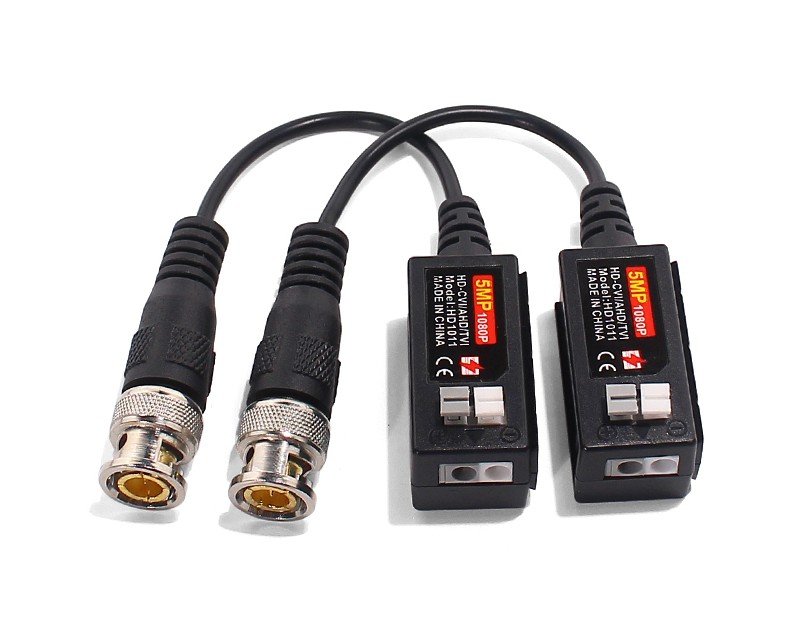

| Model | ZDVB-HD1011 |
|  Compatble With |  All Baseband Signals, including PAL, NTSC, SECAM |
|  CMRR (Common Mode  Rejection Ratio): |  60dB |
|  Storage  temperature: |   ＞20℃-70℃ |
|  MTBF |  ＞50,000h |
|  Humidity(non-condensing) |  0～95% |
|  Storage  temperature: |  -40℃-150℃ |
| Â Video Connector | Â BNC-M; Impedance 75 ohms |
| Â UTP Cable Connector | Â Screwless Terminal block:Â Impedance 50 ohms |
| Â Material | Â ABS Engineering Plastic |
| Â NCT Wight: | Â 23g |
| Â External dimension: | Â 46mm*16mm*21mm (Without Cable and BNC) |
| Wire Type: | |
|   Unshielded Cat-5 or above twisted pair wire (Please use standard Cat-5  or above twisted pair wire. The wire  quality will directly affect the transmitted image effect and transmission  distance.) | |
|  Characteristic  impedance: |  100Ω±20Ω |
|  DC loop resistance: |  18Ω/100m |
|  Differential  capacitance: |  62pf/m (Maximum) |
|  Recommend  standard CAT-5/6 or above unshielded twisted pair wire. The Wire quality Will  affect the transmission distance and video quality | |
