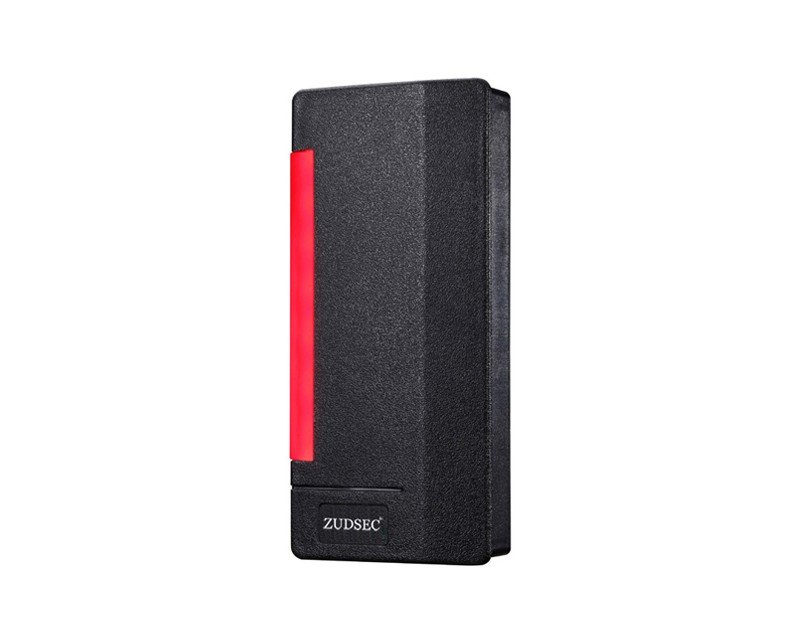

Card Reader

  • Reading Mode: 125KHz EM-ID Card; or 13.56 MHz Mifare-ID optional
  • Proximity Range: 3-15cm
  • Output Format: Wiegand 26/34, RS485/232
  • Communication Distance: WG≤100M, RS485≤1200M
  • Response Speed: Less than 0.2 second;
  • Proximity Time Distance: Less than 0.5 seconds
  • Reading Mode: 125KHz EM-ID Card; or 13.56 MHz Mifare-ID optional
  • Proximity Range: 3-15cm
  • Output Format: Wiegand 26/34, RS485/232
  • Communication Distance: WG≤100M, RS485≤1200M
  • Response Speed: Less than 0.2 second; Proximity Time Distance: Less than 0.5 seconds :
  • Wiring connection:
    Red: VCC +12V; Black: GND; Green: D0/RX/4R+; White: D1/TX/4R-; Blue: LED/CS; Yellow: BEEP
  • Working Voltage: DC12V; Working Current: 70mA
  • Color: Dark Grey Color
  • PVC Case Material (Black Resin for Water-Proof Function)
  • Temperature: -25℃ to 75℃; Humidity: 10%-90%
  • Product size: 80×42×13mm
  • Packing size:110*50*18mm; Weight: 0.15kgs
